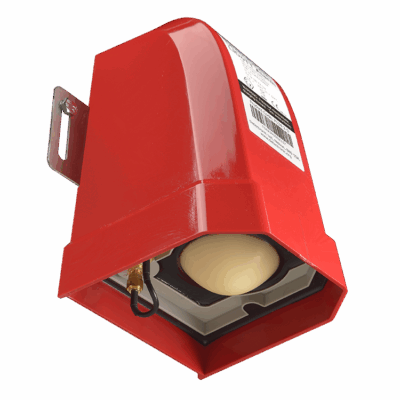

LIDoTT Sensor M: MCERTS-Certified Ultrasonic Level Sensor for EDM Compliance

The LIDoTT Sensor M is an MCERTS-certified ultrasonic level sensor designed for Überwachung von Stauräumen und RÜBs in wastewater systems. It offers high accuracy, reliability, and compliance, making it the ideal choice for monitoring discharges into storm storage or the environment.

This sensor supports a wide range of applications, including side weirs, tanks, and wet wells, ensuring precise data for regulatory reporting. With its rugged design and optional solar shield, the LIDoTT Sensor M is perfect for both confined and outdoor environments.

Hauptmerkmale

Certified for Accurate Monitoring

Der LIDoTT Sensor M provides reliable data with ±1mm accuracy over a range of 0–1m, meeting MCERTS requirements (Certificate No: CSA MC240396/00). This ensures compliance with environmental regulations.

Designed for Regulatory Compliance

Ideal for use in:

• Side weirs, double-side weirs, and bell-mouth weirs
• Tanks and wet wells
• Locations requiring precise EDM data

Built for Tough Conditions

With IP68 protection und ATEX Zone 0 certification, the LIDoTT Sensor M delivers dependable performance in hazardous or wet environments.

Optimised for Outdoor Use

For open environments, the optional solar radiation shield ensures consistent, accurate measurements while maintaining certification validity.

Extended Battery Life

The sensor includes an external replaceable battery, allowing for longer operation in remote locations and reducing maintenance needs.

Why the LIDoTT Sensor M?

The LIDoTT Sensor M simplifies wastewater monitoring by providing:

• Accurate, real-time data to support environmental compliance
• Reliability in challenging locations such as confined spaces or outdoor areas
• Easy integration with event duration monitoring systems

Limitations of Use

• Certification applies only to the ultrasonic sensor; the pressure sensor is excluded for levels beyond the ultrasonic blanking distance.
• MCERTS temperature range: -10°C to +40°C.
• For outdoor applications, the solar shield (Part No: LIDoTT-SRS-654) is required.

verwandte Produkte

• LIDoTT Smart Datalogger: Streamlines data collection and transmission
• Marco Polo Antenna: Enhances connectivity in remote areas
• Solar Radiation Shield (Part No: LIDoTT-SRS-654): Required for outdoor use
• External Replaceable Battery: Extends sensor life
• LIDoTT Sensor R: For remote, extended-range monitoring
• LIDoTT Sensor U: High-precision monitoring for sewer networks
