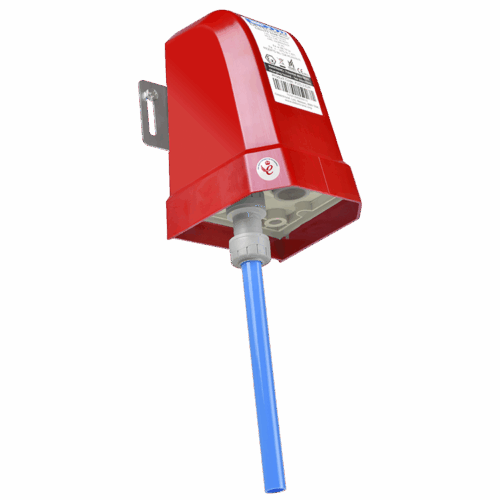

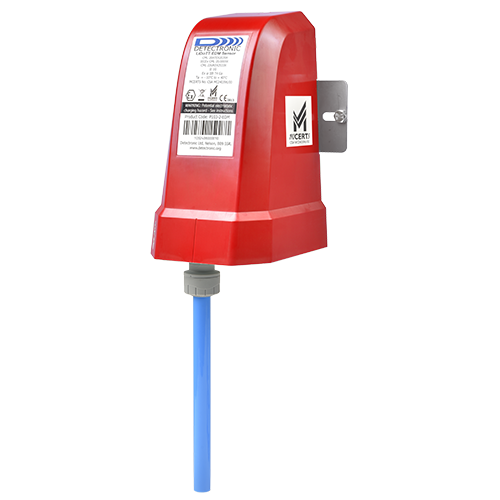

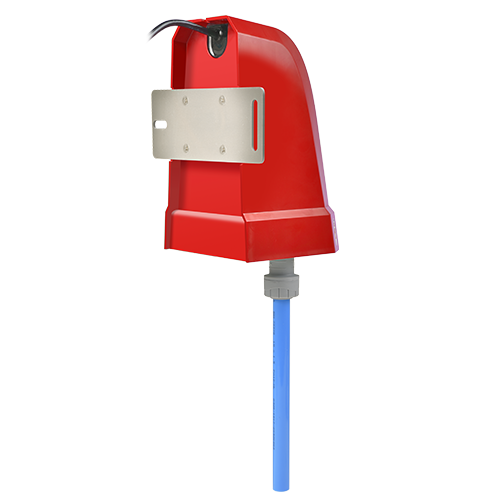

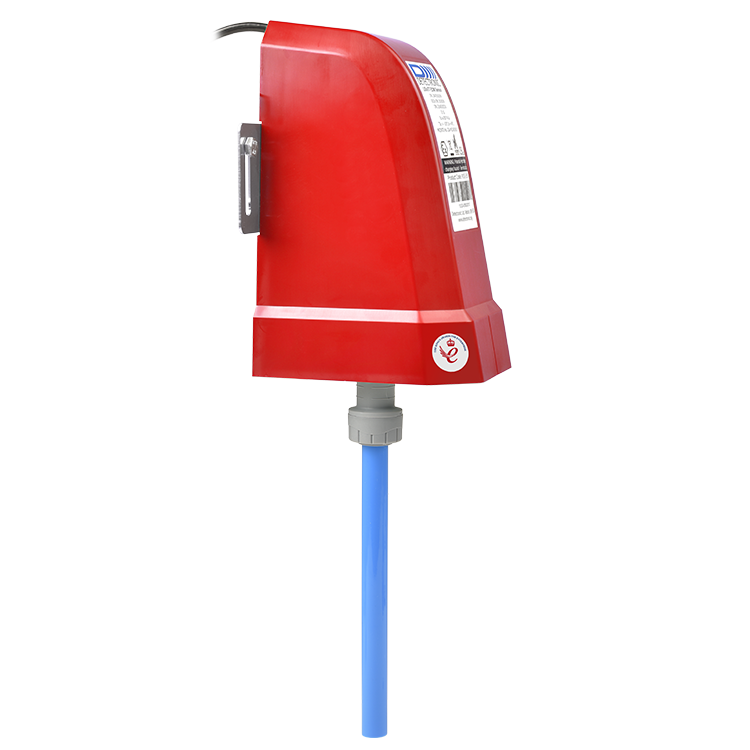

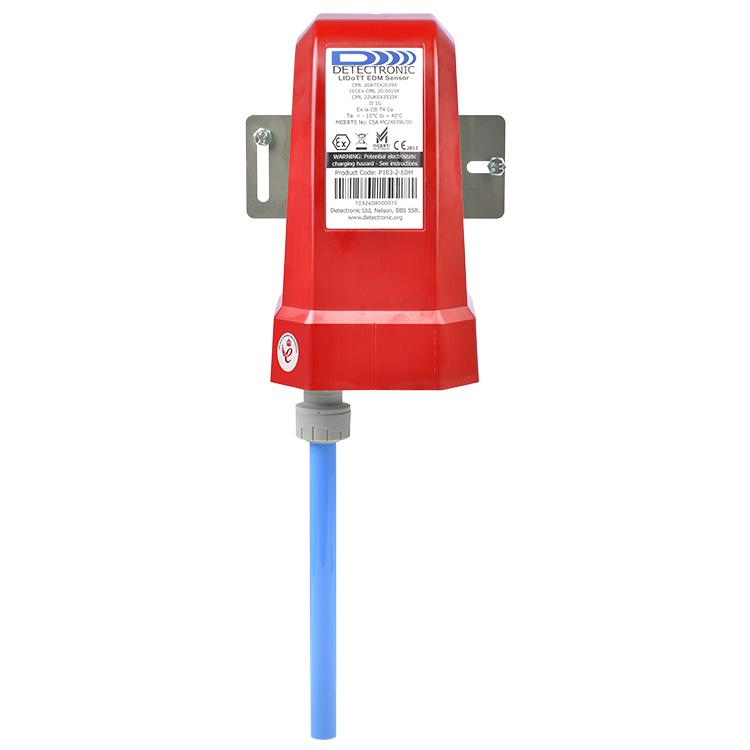

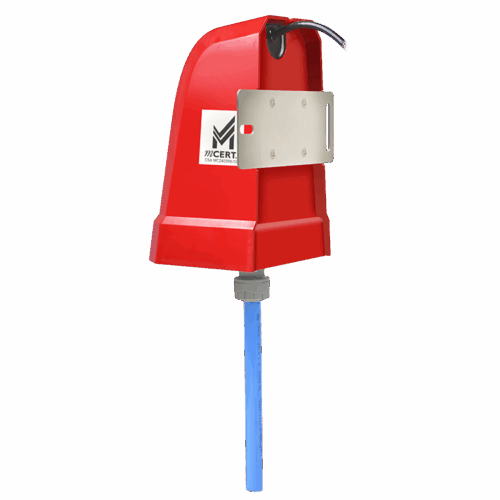

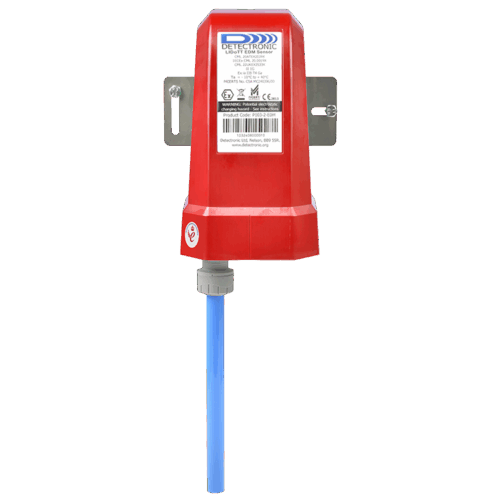

LIDoTT® Sensor M is a patented UK and worldwide design, engineered specifically for Event Duration Monitoring (EDM).
The UK’s first battery-powered MCERTS certified sensor, it ensures accurate and reliable monitoring for regulatory compliance. With seamless transitions between ultrasonic level and pressure depth measurement, the LIDoTT® Sensor M delivers continuous, high-quality data.
The LIDoTT Sensor M is a specialised version of the LIDoTT range, certified with the MCERTS accreditation for Event Duration Monitoring (EDM) under the Environment Agency’s stringent standards. This makes it the go-to solution for utilities needing to comply with regulatory monitoring requirements for overflow and flood events.
With its patented design, the LIDoTT Sensor M automatically transitions between ultrasonic and pressure-based level measurement, delivering continuous, high-quality data, even during surcharges and blockages. It is the UK’s first battery-powered MCERTS certified water level sensor, making it both versatile and cost-effective for extensive deployment across sewer networks.
The LIDoTT Sensor M is equipped with two high-quality sensors—ultrasonic level and pressure—to ensure millimetric accuracy and seamless data capture. It provides real-time monitoring, delivering critical insights into sewer performance and compliance data for regulatory reporting.
When connected to the LIDoTT Smart Datalogger, the LIDoTT Sensor M can also capture ambient temperature data, enhancing the calibration of ultrasonic measurements and supporting comprehensive network management.
The LIDoTT Sensor M is engineered for easy installation in a variety of locations, from sewer manholes to flow chambers. Its compact design and external battery option allow for flexible positioning, even in challenging environments.
The sensor’s ATEX and IECEx Zone 0 certification ensure safe operation in hazardous areas, making it suitable for environments with potentially explosive atmospheres.
The LIDoTT Sensor M is perfect for:
ULTRASONIC LEVEL SENSOR
Type: Piezo-ceramic, temperature-compensated
Range: 0.000 – 1.500m
Accuracy: +/- 2mm
TEMPERATURE SENSOR
Type: High Precision CMOS Temperature device
PRESSURE SENSOR
Type: Isolated Silicon Diaphragm
Range: 0-10.00m
Accuracy: ±0.2% FS
ENVIRONMENTAL
Operating temperature: -20°C to +60°C.
Protection: IP68/NEMA6P.
Connectors: IP68 Mil – Spec.
Dimensions: 200mm(h) x 125mm(d) x 115mm(w)
APPROVALS
LIDoTT Sensor ATEX Zone 0 certified CML 20ATEX2039X IECEx Zone 0 certified IECEx CML 20.0019X II 1 G, Ex ia IIB T4 Ga. Ta= -20°C to +60°C MCERTS No: MC240396/00 MCERTS Ultrasonic sensor certified range: 1m MCERTS Temperature Range: -10°C to +40°C
LIDoTT Smart ATEX Zone 0 certified CML 21ATEX2097X IECEx Zone 0 certified IECEx CML 21.0002X II 1 G, Ex ia IIB T4 Ga. Ta= -20°C to +60°C MCERTS No: MC240396/00
Patent Number: GB2591274
