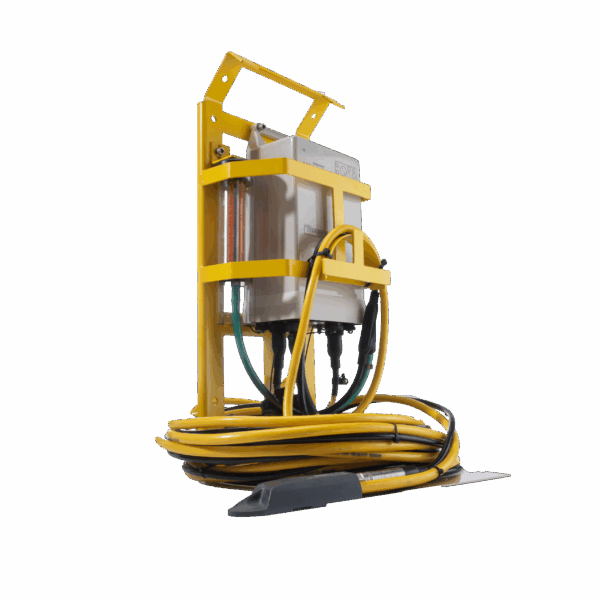

MSFM MCERTS AV Durchflußmessgerät

Das MSFM MCERTS Area Velocity Durchflußmessgerät ist ein in sich geschlossenes batteriebetriebenes Multisensor-Meßgerät. Es ist MCERTS-zertifiziert, um eine garantierte Messgenauigkeit für Standorte zu liefern, die eine Überprüfung durch MCERTS-Inspektoren erfordern. Eine MCERTS-Zertifizierung ist für manche Länder obligatorisch.

Angebot einholen

Funktionsweise

MCERTS is the UK’s Environment Agency scheme, providing a manufacturing quality standard for which monitoring equipment must meet. Read more about the scheme.

The Detectronic MSFM MCERTS flow meter, is a highly accurate ultrasonic area velocity MCERTS flow meter for open channel monitoring and part filled pipes.

A self-contained battery powered insertion multi-sensor flow meter, it is certified to deliver guaranteed flow measurement accuracy for sites which require verification by MCERTS inspectors.

Portable and easily installed, it can be used for short term or long term flow monitoring programmes. Suitable applications include:

  • Wastewater Monitoring
  • Effluent Monitoring
  • Environmental Permit Regulations (EPR)
  • Inflow and Infiltration
  • Pollution Control
  • Flood Prevention
  • Pass Forward Flows to full treatment
  • Discharge Management

Portable ultrasonic AV flowmeter, with MCERTS accreditation

The MSFM MCERTS is accredited by the Environment Agency and is the ideal monitoring system for any business, industry or water company that falls within the Environmental Permitting Regulations (EPR).

It enables companies to understand exactly what is happening with their agreed consented discharge at any given time. Any flow greater than 50 cubic metres per day must be monitored with MCERTS accredited technology according to the Environment Agency’s Self-Monitoring Certification Scheme.

Water companies can use it to precisely monitor Pump Station Emergency overflow. Wastewater treatment works can measure compliance with Pass forward flow (PFF) to full treatment and for final discharge. It can also be employed in clean water reservoirs.

Multi sensor technology for improved accuracy

Using the velocity, depth and temperature to determine the flow rate ensures a more accurate reading that doesn’t require weirs or flumes. It automatically adapts to changes in production and intense weather that can affect the flow rates.

The MCERTS MSFM is battery powered making it perfect for installations that have no mains power available, such as remote sites.

The Lithium Ion battery has a life expectancy of 5 years.

Data Screening

Detectronic’s dedicated data centre monitors your network and uses your data to detect blockages before they cause flooding and pollution.

  • Real time data collection and monitoring helps you better understand your sewer network.
  • Using human Intelligence means you only receive validated intervention reports
  • Site data, MET office data and local environmental data is integrated for every site
  • Compatible with data from any make of telemetered monitors

Technische Daten

Produkt Spezifikation

GESCHWINDIGKEITS SENSOR

Typ: zwei piezoelektrische Elemente.

Messbereich: 0.03m/s bis 4.00m/s (Auflösung 1mm/s).

Linearität: ±1%.

Genauigkeit: ±2.5% FS (±1% im kalibrierten Bereich 0.05m/s - 2.00m/s)

DRUCK SENSOR

Typ: hydrostatischer Druck

Messbereich: 0.0m to 3.5m (Auflösung 1.0mm)

Linearität: 0.1% BSL.

Genauigkeit: ±0.2% FS (±0.1% im kalibrierten Bereich 0.03m – 2.00m).

TEMPERATUR SENSOR

Typ: Thermowiderstand

Messbereich: 0°C bis 50°C

Genauigkeit: ±1°C

OPTIONALER (ULTRASONIC) LIDOTT® LEVEL SENSOR

Typ: Piezo-keramisch, temperaturkompensiert

Messbereich: 0.000 - 10.50m

Genauigkeit: +/- 2mm

DATEN LOGGER

Speicher: Solid State 512k-max 60k pro Kanal (FIFO oder store until full)

Speicherintervall: 1 - 60 mins.

2G/LTE-M/NB-IoT GPRS Kommunikation weltweit kompatibel.

Datenübertragung: 2G/LTE-M/NB-IoT GPRS - 15 mins, stündlich, täglich, wöchentlich, monatlich.

Logger Energieversorgung: 5 Jahre Standzeit interne Lithium Batterie (von Nutzer tauschbar)

HAUPTSENSOR ENERGIEVERSORGUNG

Typ: 12V ATEX Li-Ion Akku, aufladbar.

Batteriestandzeit: 30+ Wochen bei 5 mins Loggingrate

ARBEITSUMGEBUNG

Betriebstemperatur: -20°C bis +60°C.

Schutzklasse: IP68/NEMA6P.

Stecker: IP68 Mil - Spec.

Maße: 530 x 213 x 150 (maximum) Inkl. Batteriepack und Schutzrahmen.

Gewicht: 8.5kg (inkl. Batteriepack, Rahmen, Dopplersensor mit 10m Kabel).

ZULASSUNGEN

Sira 19ATEX2255X

II 1G Ex ia IIB T4 Ga Ta = -40°C to +60°C

IECEx SIR 19.0078X

MCERTS CERTIFIED RANGE

0 to 30l/s for 197mm channel.
0 to 20l/s for 152mm pipe.
0 to 25l/s for 188mm pipe.
0 to 30l/s for 244mm pipe.
Certificate number: Sira MC180336/03.
