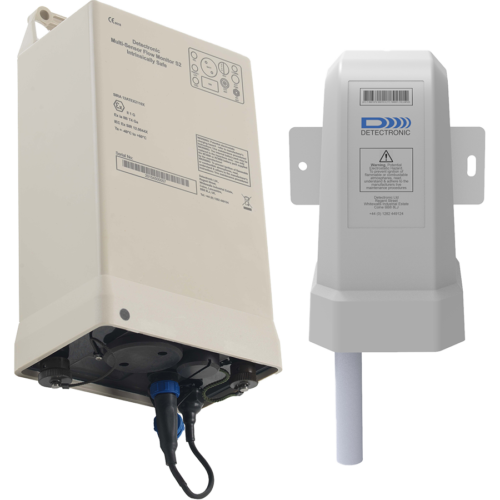

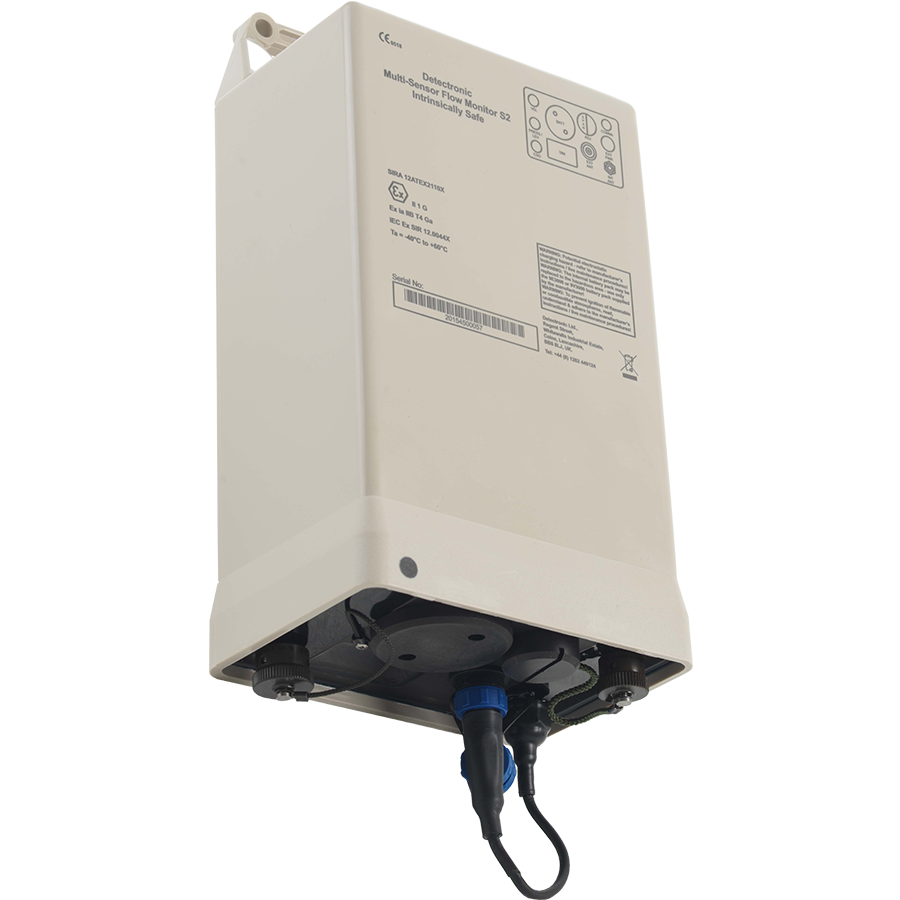

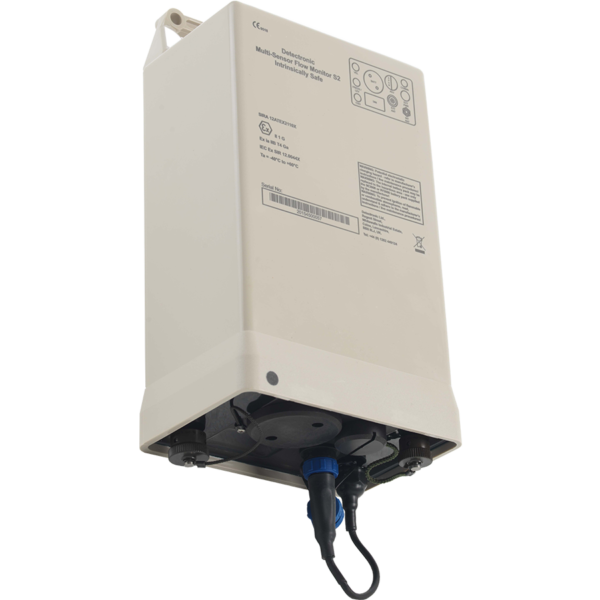

Detectronic‘s MSFM Lite combined liquid level sensor is specifically designed to measure the levels and depth of water in Combined Sewer Overflows. It can also be used for remote monitoring of tank and reservoir levels located in potentially explosive atmospheres certified to ATEX Zone 0.
It uses power saving technology developed by Detectronic to provide up to five years of battery life. This is significantly longer and more cost-effective than traditional, mains-powered ultrasonic sensors and GSM/GPRS modems.
The LIDoTT liquid level sensor integrates level, depth and temperature sensors into one compact device. This provide a full range of level measurement under both normal and surcharged conditions.
Under normal conditions the depth of the flow is inferred from the measured distance between the ultrasonic sensor and the surface of the flow. This distance is calculated by measuring the time taken for the ultrasonic pulses to traverse the return path from the sensor to the water surface. Compensation for the effects of changes in air temperature is applied automatically.
When the sewer network is stressed during storm weather events or by blockages, the LIDoTT Sensor automatically switches sensor mode from ultrasonic (level) to pressure (depth) as the liquid level
rises, seamlessly delivering high-quality network management data. This transition is transparent to the external datalogging device which needs only a single recording channel.
The data is read and recorded by the MSFM Lite at predetermined logging intervals set by the user. Logged data is then transmitted via it’s 2G/3G/LTE-M1/NB-IoT capable modem (at user-selectable intervals (typically hourly, daily, weekly or monthly). Data can be transmitted direct to a host computer or viewed on Detectronics range of secure websites.
LIDoTT® is a unique, UK and Worldwide, patented design.
On rising and falling water levels, LIDoTT® seamlessly transitions from ultrasonic level measurement to pressure depth measurement and back again – delivering continuous data.
Self contained water level measurement and alarm device.
Tipping Bucket Raingauge incorporates a high quality robust, reliable, precision measuring device and Detectronic’s MSFM GPRS Data Logger.
They combine to provide a fully automated transmission of Rainfall.
An open channel, non contacting flow meter designed for use with flumes and weirs.
The Orakel Primary device system is a non contact water level sensor. It comprises an ORAKEL controller and an external level transducer.
An intuitive and versatile flow module is built into the Orakel. It works by converting level readings to flow measurements using standardised formulas.
This product is particularly well suited to measuring flows through weirs and flumes.
The LIDoTT® Sensor R is a high-precision radar and pressure sensor designed for continuous, reliable monitoring in challenging environments.
LIDoTT® Sensor M is a patented design, engineered for precise Event Duration Monitoring (EDM).
As the UK’s first battery-powered MCERTS-certified ultrasonic level sensor, it ensures reliable monitoring for regulatory compliance. With ±1mm accuracy and robust construction, the LIDoTT® Sensor M is ideal for diverse wastewater applications.
